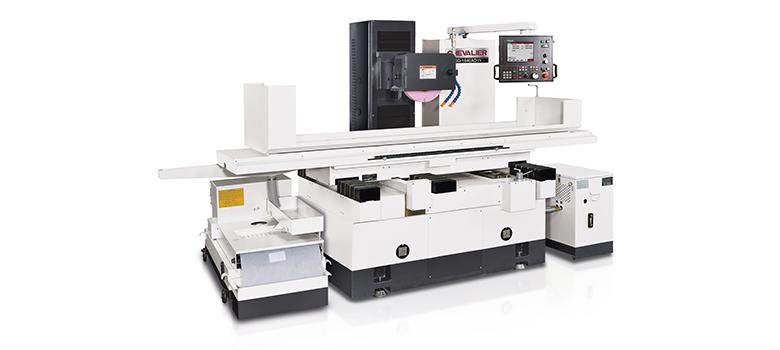

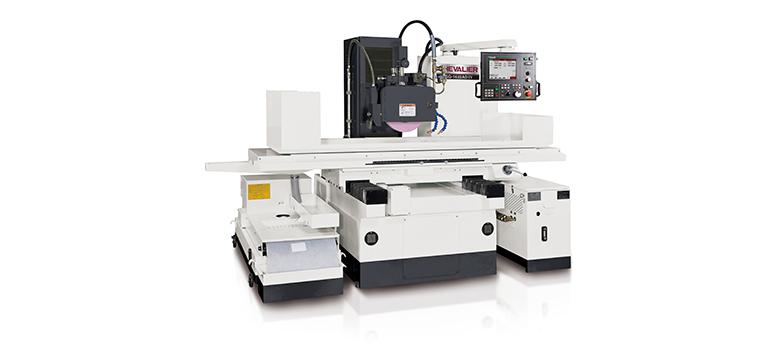

Automatic Precision Surface Grinding Machine (12/16ADIV) FSG-1224 / 1632 / 1640ADIV

  • Automatic Precision Surface Grinding Machine (12/16ADIV) FSG-1224 / 1632 / 1640ADIV
  • Automatic Precision Surface Grinding Machine (12/16ADIV) FSG-1224 / 1632 / 1640ADIV
Automatic Precision Surface Grinding Machine (12/16ADIV) FSG-1224 / 1632 / 1640ADIVAutomatic Precision Surface Grinding Machine (12/16ADIV) FSG-1224 / 1632 / 1640ADIV

Automatic Precision Surface Grinding Machine (12/16ADIV) FSG-1224 / 1632 / 1640ADIV

  • FSG-1632ADIV
  • FSG-1640ADIV
  • FSG-1224ADIV
  • Product description: PLC touch screen 3 axes fully automatic surface and plunge grinding system 10.4” TFT high resolution 65536 color control to ensure ease of operation High precision cartridge type spindle equipped wi
  • INQUIRY
  • PLC touch screen 3 axes fully automatic surface and plunge grinding system
  • 10.4” TFT high resolution 65536 color control to ensure ease of operation
  • High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding Remove period
  • Wheel head will raise up to end, start and reference positions
  • Table parks at left or right side after cycle is completed
  • I/O diagnosis & alarm display
  • To achieve better accuracy, the number of free passes between down-feeds can be preset depending on work piece material Remove period
  • Automatic Dressing on Table
  • Load Force Detection
  • In-Machine Dynamic Balancing


  • Variable Speed Spindle
    • Touch Screen Monitor
    • 3-Axis Fully Automatic
    • Table Size (W x L): up to 400 x 1,000mm (16" x 40")
    • Auto Dressing and Compensation (Optional)
    • Elevation and Crossfeed are driven by Servo Motor
    • 3-Axis Linear Roller Slide Way
    • Max. Grinding Size: up to 400 x 1,000mm (16" x 40")
    • Spindle Power: up to 5HP
