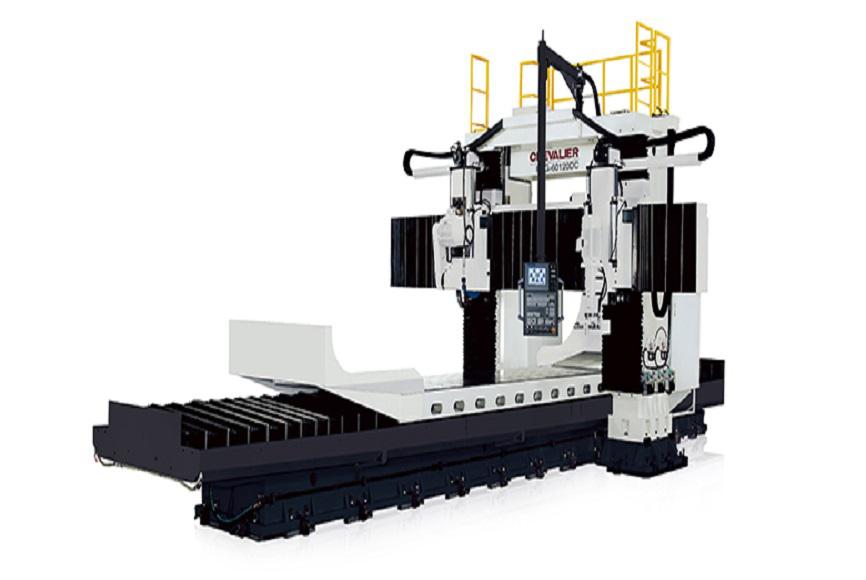

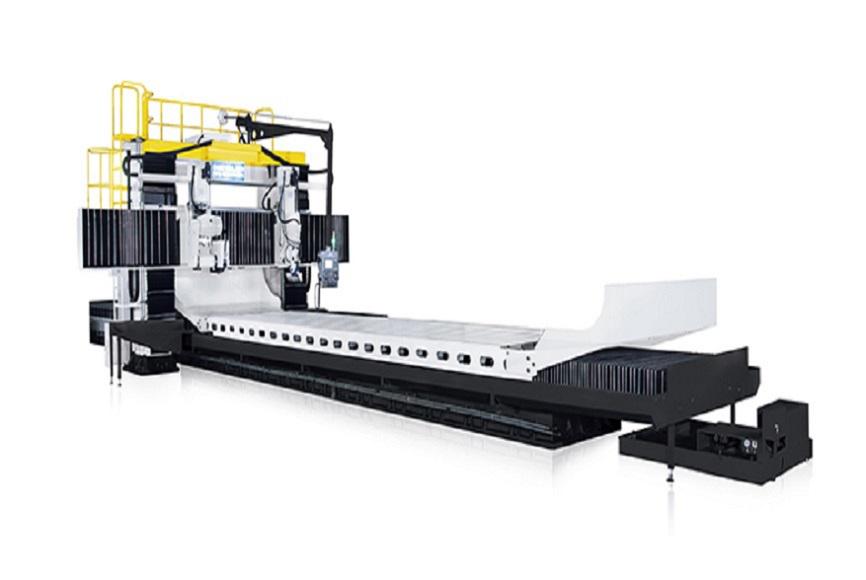

Double Column Moving Beam Grinding Machines(FPG-DC series) FPG-60120 / 60160 / 60200 / 100160 / 100200 / 100240 / 100400 / 100480 / 120200DC

  • Double Column Moving Beam Grinding Machines(FPG-DC series) FPG-60120 / 120200DC
  • Double Column Moving Beam Grinding Machines(FPG-DC series) FPG-60120 / 120200DC
Double Column Moving Beam Grinding Machines(FPG-DC series) FPG-60120 / 120200DCDouble Column Moving Beam Grinding Machines(FPG-DC series) FPG-60120 / 120200DC

Double Column Moving Beam Grinding Machines(FPG-DC series) FPG-60120 / 120200DC

  • FPG-60120 DC
  • FPG-120200DC
  • FPG-100200DC
  • FPG-100120 DC
  • Product description: The FPG-DC series Double Column Grinder with Moving Beam offered by Chevalier is designed for shops demanding speed, rigidity and a very large grinding area. These gantry type grinding machines are pe
  • INQUIRY
  • X axis designed with big"V"slide way.
  • Compoumd two flat & one big V ( 一V一)longitudinal slide ways design for high straightness accuracy.
  • Smooth table movement.
  • Big V way design for minimizing heat deformation.
  • Graphic conversational operation system for easy CNC operation, high performance for surface and form grinding. Elevation with counter weigh balance design.
  • Concave/convex grinding function. (Workpiece with 0.06mm concave grinding)
  • Superior NN type double row cylindrical roller bearing design for maximum grinding performance.
  • Separated “BOX" type Double column and work table.
  • Whole series Modularized design.
  • Pro-E designed machine base, no S shape deformation.
  • Machine and base accuracy will not affected by the grinding heads movement.
  • Grinding vibration will not affect work table, thus, offer better surface finish and accuracy.
  • Square type double column design, provides highest rigidity.
  • Ground beam design, accuracy will not be affected by the moving heads.
