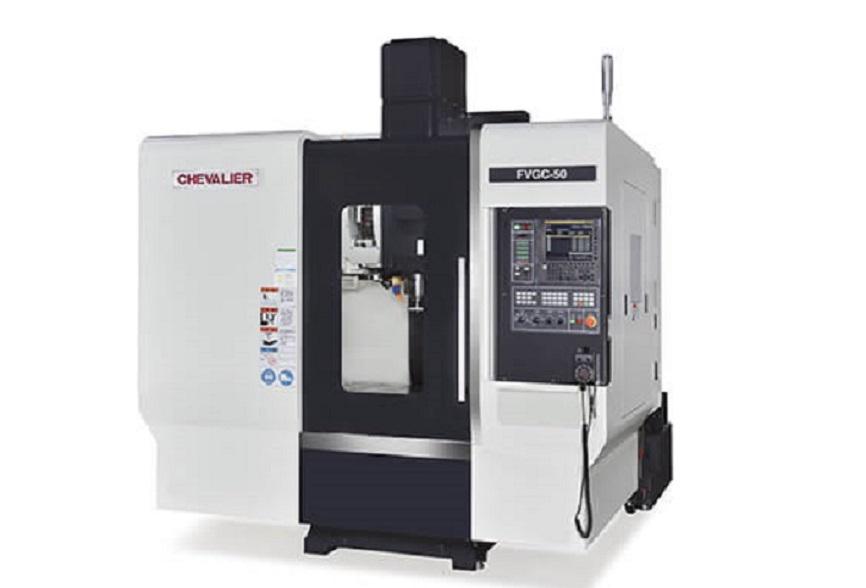

Vertical Grinding Center (FVGC Series) FVGC-40 / 50 / 60 / 63 / U60

  • Vertical Grinding Center (FVGC Series) FVGC-40 / 50 / 60 / 63 / U60
Vertical Grinding Center (FVGC Series) FVGC-40 / 50 / 60 / 63 / U60

Vertical Grinding Center (FVGC Series) FVGC-40 / 50 / 60 / 63 / U60

  • FVGC-40
  • FVGC-63
  • FVGC-60
  • FVGC-U60
  • Product description: The FVGC Series of vertical grinding machine is easy setup, flexible and sealed to grinding. The axial protection design creates a completely sealed machine during the grinding operation. The workta
  • INQUIRY
  • The FVGC Series of vertical grinding machine is easy setup, flexible and sealed to grinding.
  • The axial protection design creates a completely sealed machine during the grinding operation.
  • The worktable’s water-guided and waterproof design, which effectively prevents dust pollution, protects and increases the life span of precision transmission components.
  • The coolant and filtering system filters and separates cutting chips, powder and impurity from the coolant liquid during the machining processes.
  • The tool magazine’s automatic door provides fully enclosed dust-proof protection
  • The optional fourth axis can be installed as the second spindle for rotary machining of ring-shape workpieces, with a stable and low-speed feed.
  • Coolant-Through-Spindle System removes chips and heat from deep-hole machining and enhances tool cutting performance, longevity and parts accuracy.
  • The double-row cutting fluid spray pipe function can form a water curtain to lubricate and cool the cutting points of various parts during processing.
  • Spindle oil cooler can cool down the spindle temperature by constantly cycling the oil.
  • The centrifugal filtration device uses high-speed, rotating centrifugation to separate the cutting fluid from dust.
  • The water power filter or hydrocyclone system can filter and separate particles without the need to replace consumables.
  • The graphical conversational software for this machine is a perfect match for this industry’s small batch production needs in the punch industry.
  • An optional, table-mounted diamond roller dresser uses the graphic conversational function to grind different workpieces and perform grinding wheel dressing and compensation automatically.
